Philip Juras: Picturing the prairie. A vision of restoration

By Bill Kleiman

Philip Juras

Philip Juras is a landscape painter with a show at the Chicago Botanic Garden, ending September 12, 2021.  His new book is Picturing the Prairie.  A vision of restoration.  I had a recent discussion with Philip about the intersection of habitat restoration and his landscape paintings.  At bottom, check out the link to the show.  There is a nice short video on the Botanic Garden site.

Beaver Pond, Nachusa Grasslands, Illinois 2019, Oil on canvas, 30 by 54 in.

Beaver Pond, Nachusa Grasslands.  Bill Kleiman: I know this place. I have stumbled around in this foreground with a pack of herbicide spraying trefoil and sweet clover.   The powerlines that cut across this landscape are behind the painter. The beaver pond looked like that if you squatted down.  This summer the beaver moved down stream a quarter mile and their dam broke down here, so the pond is gone.  Those skies Philip paints are what we Midwesterners feel about our everchanging mountains of cloud.

Nachusa Bison, Illinois 2021 Oil on canvas 24 by 36 in.

Philip tends to leave out powerlines, cars going by in the distant, humans and he sometimes extends the habitat further than what is there.  Of course, as we are working to restore habitats our imaginations do the same, thinking back in history to what was likely in our view, and what steps we could take that get us closer to that place where nature is thriving.

Philip says he sometimes extends a landscape because he “can build onto what restoration has done to the landscape in the foreground in front of me.  It is a desire to see something, and experience something, that has not existed in my lifetime.”

“I know [these landscapes have] great quality and significance…and [they] also represent something wild and historic that I can’t otherwise experience.  So I wonder if those motivations that drive me are the ones that drive the restoration expert.”

Late Afternoon on the Grand Prairie of Illinois c. 1491, 2019, Oil on canvas, 36 by 60 in.

Late Afternoon on the Grand Prairie of Illinois c.1491 Bill: This is a big painting at a width of five feet.   That current view would be perhaps a few acres of prairie surrounds by crops to the horizon.  I try to imagine what it was like before modern settlement.   In 1491, many Native American villages of various tribes would have been located along the rivers and in the oak groves. Such prairie landscapes that may appear daunting to us likely felt to them like a bonanza of tubers, berries, fruits, seeds, fibers and animals to harvest.

Philip: “[The grand prairie] was written about in a celebratory way as well as being awed by and troubled by the setting they were in.  I was hoping to communicate that this historic landscape was not simple, straight forward, this was a rich and beautiful environment, but this was not an easy place to live in. I wanted to communicate the sense of isolation and lack of orientation.  These things that we have no idea about.”

Shoe Factory Road Woods, Cook County, Illinois, 2020, Oil on canvas, 30 x 42 in.

Philip: “Something I noticed about restorations I have seen.  How much intent is incorporated in each one of them.  When I first started thinking about prairie restoration I thought it amounted to throwing seeds out and seeing what happens, but knowing what I know now, I see there is a great deal of intention, a great deal of science.   This is not something that just happens.   I went into this looking for something that was very natural and found something that was man made, in the historical landscape and in the contemporary landscape.”

“I got to know the tallgrass prairie in Illinois that were natural and wild, were in fact I was discovering a connection with people who were there a long time ago. I came into this to find nature and I got connected with culture.”

At the Chicago Botanic Garden through September 12, 2021 https://www.chicagobotanic.org/picturing_prairie

You can see many other works at his website. https://www.philipjuras.com/

Posted in Uncategorized | Tagged , , | Leave a comment

From Rags to Riches

By Bryon Walters

I have a corner in my prairie where a neighboring farm field drains through my center waterway. Sometimes I receive corn plants from the field, but for the past several years Giant Ragweed, Ambrosia trifida, has found a temporary home in the prairie.

It is not feasible or wise to spray this large canopy weed because there are many nice prairie plants growing next to or under them.

The best approach I like is the old fashioned clip method. With a sharp pair of shears I cut these tall weeds from the top down in sections, usually thirds or halves. I clip the few Mare’s tails also. Just leave the cut material lay there. They don’t grow back and I’ve observed less plants than last year.

It took me less than 30 minutes to cut up several hundred various sized “rags”.

This is very rewarding work and I don’t have to worry about damaging nice plants. If you have a larger infestation, you could use a powered brush saw that has the three-blade cutting head on it. Although, you may accidentally cut things you don’t want to and the saw is difficult to maneuver in a tall, rich prairie.

Either method is better than chemical treatment.

Swamp Milkweed and Monarch approved.

Posted in Uncategorized | Tagged , , | 3 Comments

Transline control of yellow sweet clover

By Bill Kleiman

I have noticed with yellow sweet clover, Melilotus officinalis, that if I apply 1% Transline with a surfactant late in the bloom of yellow sweet clover that the clover appears to set some seed. We don’t want that. When I apply Garlon 3A or Crossbow the plants wilt and brown faster. I was curious to watch the progression of several marked yellow sweet clover that I treated with Transline on May 26, 2021. Here is one patch over time:

3 days later, May 29
9 days after, June 4
20 days after, June 15
42 days after, July 7

Lesson learned:

The Transline killed the yellow sweet clover, but I suggest treating plants early in bloom or before bloom is best. If in full flower use a different herbicide, or add that herbicide to your Transline.

In June 2025 a boom sprayed large occurrence of white sweet clover failed to kill the mature plants.

Why use Transline? It works well on crown vetch and cow vetch. Some adult plants are resistant to Transline, such as the genus Lespedeza, so don’t use this for your L cuneata control. But it is good to know that Transline can work if that is what you have in your tank.

Posted in Uncategorized | Tagged , , | 9 Comments

Birdsfoot trefoil miss

By Bill Kleiman

Nachusa Grasslands has a 20-acre prairie planting, number 91, http://www.nachusagrasslands.org/uploads/5/8/4/6/58466593/planting_91_-_2009_-_stone_barn_prairie_-_stone_barn_farm_unit_-_crew_-_c_considine.pdf that is coming along nicely with a thick cover of native plant diversity. But it also has about 100 birdsfoot trefoil, Lotus corniculatus, small patches of plants scattered throughout.

I used the little tractor above with its 50 gallon tank to drive transects back and forth across the planting to find the trefoil. I did not use the boomless tip but rather a hand nozzle where I can spray almost as exactly as a backpack sprayer can. The tractor is nice for this purpose because it is nimble, you sit higher than in a UTV, and it is easy to go slow and look.

JD9 spray gun

Why would I use a tractor instead of going on foot? I had about two hours to spare, the unit had not been burned so it was harder to walk through. The crew was busy with trefoil on another unit. So I loaded with 1 ounce per gallon Milestone (this is less than one percent and more than half percent) and non-ionic surfactant and drove slowly along.

My error, the miss, is that I should have done this work a week earlier because now about half the trefoil looked as above with seed pods forming. Those brown ones are full of seed mature enough to seed the ground. From experience, trefoil seeds last for a decade or two in the soil. This cohort of seeds will germinate not all at once, but they will emerge at various times in the summer and for many future summers. These are good traits for a plant picked to deal with heavy grazing.

Let us not dwell on why the Federal government is breeding this weed to be even more aggressive while also funding natural areas work to control it.

The trefoil got in there because a nearby degraded remnant has patches of trefoil. Likely deer and rabbits deposit seed in the planting.

I could not let the seed go. A few days later I went out three mornings in a row to re-locate the patches I sprayed (easy to do as I just followed the tractor tracks with my UTV). I tried clipping the plants with a scissors and I tried using a scythe to cut the entire plant, but I ended up concluding (with my daughter’s help) that simply tearing at the trefoil by hand worked fastest. I filled up 28 barrels with trefoil and added it to weed burn pile.

I also sprayed a bit of basal bark herbicide where the plants emerge for good measure. I covered this topic here: https://grasslandrestorationnetwork.org/tag/lotus-corniculatus/

This is one huge trefoil plant
I cut the one trefoil with the little saw and treated the “stump” with basal bark herbicide
After photo with the one trefoil removed.

Lesson learned: Don’t be late. Have a method to remind you where weeds are located. We use Field Maps (formerly Collector). Have a calendar warning. Don’t plant prairie into soils with weed issues. Don’t let legume weeds go to seed. If you create nice prairie plantings you won’t mind defending them from invasive weeds.

Posted in Uncategorized | Tagged , , , , | 4 Comments

Planting #117 a success

By Bill Kleiman

This 2015 planting at the Senger tract is awesome. 35 acres planted with 1,400 pounds of un-cleaned seed from 117 species.

Below are some photos looking down.

Above is purple milkwort (pink), western sunflower, wide leaved pussytoes, lance leaved coreopsis, rough blazing star, prairie cinquefoil, cream indigo. I found the milkwort several times walking a transect. Kudos to the crew who picked the little milkworts and the pussytoes. We pick from the end of May through Thanksgiving.

Above is western sunflower, wide leaved pussytoes, silky aster, hairy hawkweed, downy yellow painted cup, wild quinine, thimbleweed, lupine, showy goldenrod, dropseed, rattlesnake master, spidorwort, sheep sorrel (exotic).

Above is cream gentian, stiff aster, prairie coreopsis, wide leaved pussytoes, wild quinine, spidorwort, showy goldenrod, round headed bushclover, downy yellow painted cup, sheep sorrel, lower left grass I am not sure about.

Above little flower is long leaved bluets, western sunflower, downy yellow painted cup.

Above is butterfly milkweed, hoary vervain, wild quinine, wide leaved pussytoes, hirsute penstemon, grass leaved goldenrod, cream indigo, showy goldenrod, spidorwort, little bluestem, western sunflower, silkey aster, lupine.

Above is the same planting but in the lower areas to the south.

How did we get these great results? We hired an awesome crew of Jocelyn F, Kaleb B, Jake H, Mikko H, Sandra V, Kim E, Leah K, Ryan B. They pursued seed most every day all summer and fall. See the full report at http://www.nachusagrasslands.org/uploads/5/8/4/6/58466593/planting_117_-_2015_-_senger-_senger_tract_-_crew_-_k_elsenbroek_.pdf

Posted in Uncategorized | Tagged , , , | 4 Comments

Sickle bar mower for sweet clover control

Byron Forest Preserve does a lot of work on controlling yellow and white sweet clover on their remnants and in hundreds of acres of prairie restorations. Russell Brunner and Austin Webb of BFP liked their Italian made Enorossi sickle bar mower such that they bought a second one this year so both can mow sweet clover patches.

For successful mowing of sweet clover you wait until the clover is well into its bloom, but before it has made any seed. You want to mow the clover very close to the ground, below any leaves that are green on the stem. This is impossible in areas with stumps and rocks, but works fine in our silt loam prairies.

Your typical rotary mower that is pulled behind a tractor often means the tractor tires run over a lot of the clover, and the mower can’t cut this laid down clover as the blades won’t go that low. This leaves the operator reversing over clover patches and/or repeated mowing a patch to try to cut the clover.

Austin Webb explaining the mower

These sickle bar mowers cut to the side of the tractor and mowing a patch of clover is quite easy. The sickle bar can be raised from the tractor, where you drive to a patch, lower the sickle, cut, and raise the bar and drive to the next patch. This means you are disturbing the least amount of prairie to get the patch of weeds cut. If the sickle bar hits a stump or an ant mound the bar pivots out of the way, and you can reverse a bit and the bar snaps back into place.

Sickle bar mowers are old technology. They are made for hay cutting. Sweet clover is a hay. If you use the mower for its intended use it will be a reliable tool.

You have to see this in action. Here is a 30 second video showing Austin running the mower: https://youtu.be/kA2A1XSxrA8

Posted in Uncategorized | Tagged , | 1 Comment

Photo point example

by Bill Kleiman, Nachusa Grasslands

Above, the panoramic photo is on a property boundary of the Middle Rock Conservation Partners Hill Site. On the right is a neighbor’s brush thicket. On the left is the Hill Site after an extensive amount of brush mowing, chainsaw work, stacking logs, basal bark herbicide, seeding with a prairie mix, and a fire this spring.

If you were walking out there with me the difference between the two tracts is brushy night and savanna day. But can our camera pick up what our eyes readily see?

When we first purchased this tract we collected vegetation cover from 70 random vegetation quadrats with a photo looking down at each quadrat and a photo looking north from each quadrat. Link to protocols at end.

Below are two photo pairs.

August 5, 2019

June 15, 2021

August 5, 2019
June 15, 2021

Did the photo pairs convince you that we cleared a lot of brush?

You might be looking for those white oak trees in the first photo of point 39. The brush was too thick to see any of those 3 large trees. The GPS accuracy of my phone is likely about 15 to 20 feet. There were no permanent posts in the ground. I simply used an Avenza map with the numbered points and walked about until the phone dot hovered over point 39. So the two shots could be off by as much as 30 feet. Does it matter?

To see a nice slide show summary of the vegetation and photo protocols I used go the Middle Rock Conservation Partners website here: https://www.middlerockconservationpartners.org/vegetation-baseline-survey.html

Posted in Uncategorized | Tagged , , , , | 2 Comments

Leafy spurge, blue paint and mapping

By Bill Kleiman

Did you miss our GRN posts? Spring fire season was busy and I took a break from posting, and then the habit stuck the last month. I am looking to post your ideas. Send me a pitch.

This is invasive leafy spurge, Euphorbia virgata, but I learned it as E. escula. At Nachusa we have had just three patches of this weed, but our county roadsides and many pastures are infested with it. I seem to have vanquished two of our patches, but this last one persists, this year I found this one cluster and a few scattered plants nearby. In the past I likely missed some plants and so they flowered. I may have not made a visit to the site one year. Bad habit. I know I sometimes used the herbicide in my pack for convenience, rather than the correct herbicide for leafy spurge, which seems to be 1.5% amazapic.

Why is one plant blue? I sometimes apply tree marking paint to plants I treat to help me remember that I treated that individual plant. Later in the season I can return and see the blue, remember that I treated that plant, and see what the effect was. I marked about half a dozen plants that morning. I find this marking to be satisfying because it increases my confidence in the effect of my treatments.

In my truck I usually have tree marking paint. I like blue as it is easy to spot. This is Aervoe brand, but Nelson makes the same. Places that sell such are Ben Meadows, Gemplers, Forestry Suppliers and others. Tree marking paints are simple formulations without various chemicals you would have in a paint from the hardware store. Tree marking paints are color in a can with some solvents. They even spray at temps below freezing. Generally, the can will spray all the way to empty. When done spraying tip the can upside down and squirt a bit out.

On a tree a dot of blue will fade after about two years. Paint is better than flag tape because it does not blow off after the first windy day. We do use a lot of flag tape too.

This is a screen capture from the ESRI Field Maps app. Field Maps replaces Arc Collector. The blue dot was me sitting on my tailgate sipping coffee and enjoying the morning. The green polygon is the leafy spurge general occurrence. Within that polygon was the spurge in the photo above. This app lets me and other staff and volunteers enter weed occurrences which is awesome. We can see each others data.

This is the Field Maps drop down menu associated with the spurge polygon. This is good data to have and it took me about two minutes to enter it on my phone app.



Field maps: This is the second half of the drop down menu. It is fun to come back to a weed patch, and then look up the history of that occurrence while I stand next to it. Learning is fun. Fun is what keeps me a happy weed warrior.

Posted in Uncategorized | Tagged , , | 1 Comment

Planting prairie plugs

By Jim Alwill

Jim Alwill – prairie plant propagator
I grew lead plant in pots in two months.
Lead plant

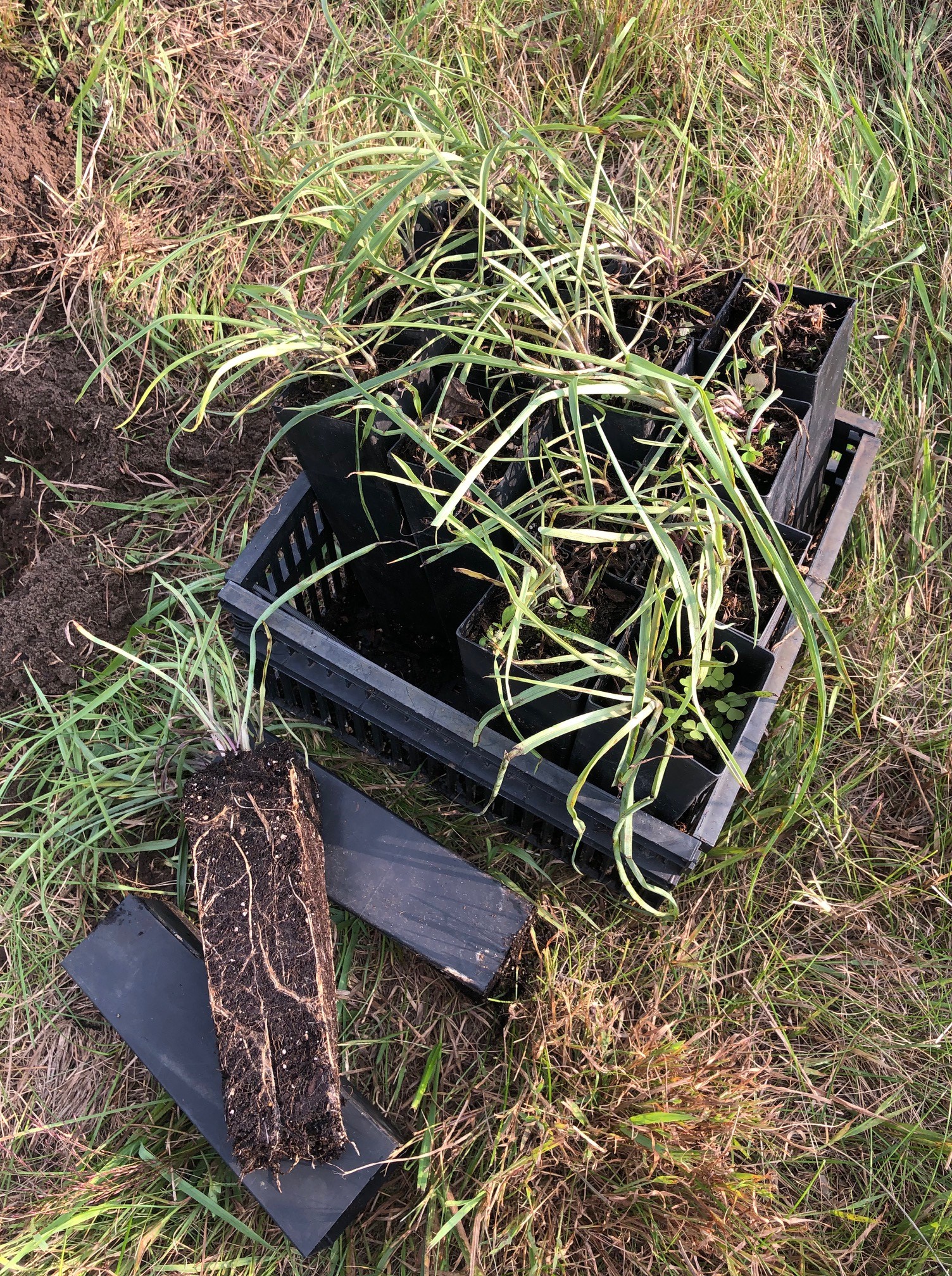

I planted 100 lead plant in one hour on a sand hill in Bureau County, IL. 100% survival. Planting in rows and patches makes it easy to collect by hand, and I create habitat by replacing brome grass sod that won’t go away easily.

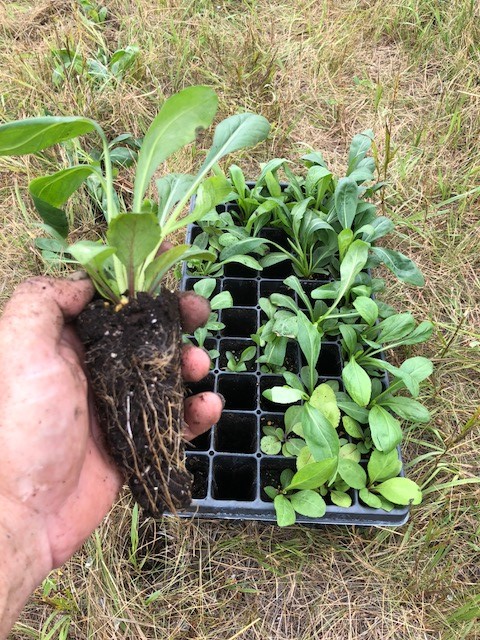

Spidorwort, Tradescantia ohiensis. I have been planting in sand the last three summers in early September with great success. The key is to have plants with good roots that were gown in full sun. Give the plugs in their growing flats just enough water to survive the next couple of hot days. I purposely let the flats go dry and the plants start to go limp, and then I water them in the last hour of daylight.

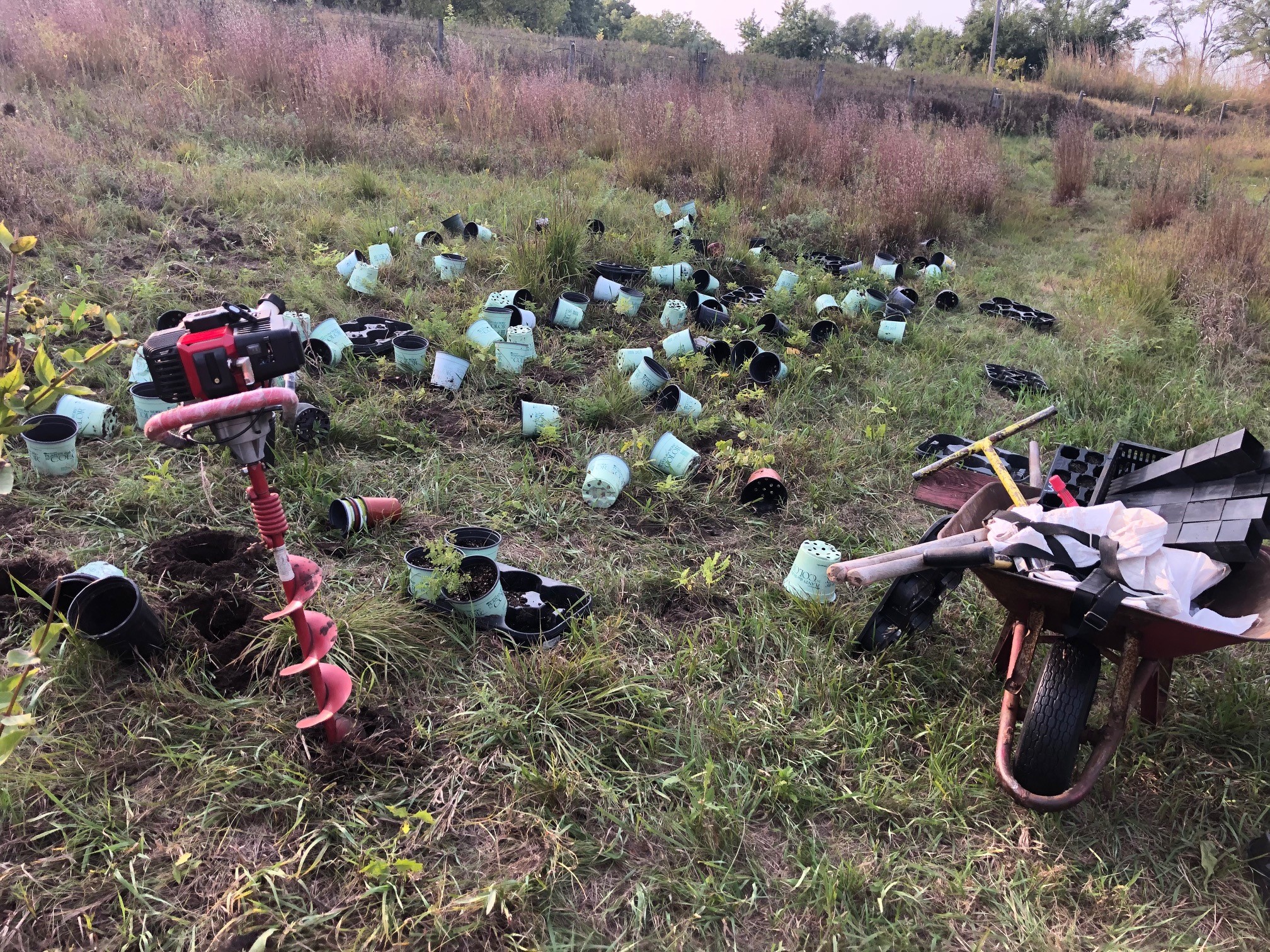

Post hole digger for the bigger plugs

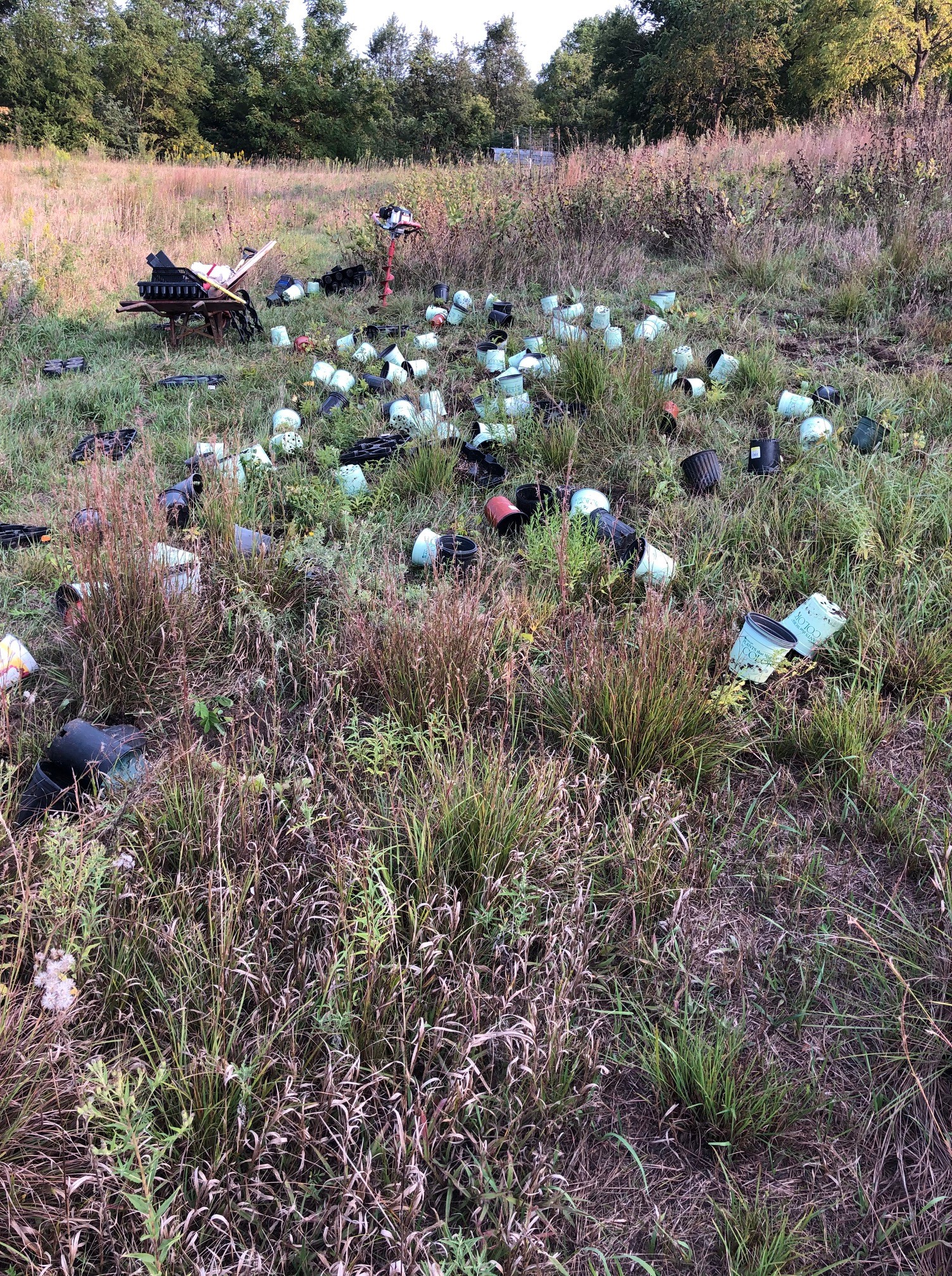

Before image while planting

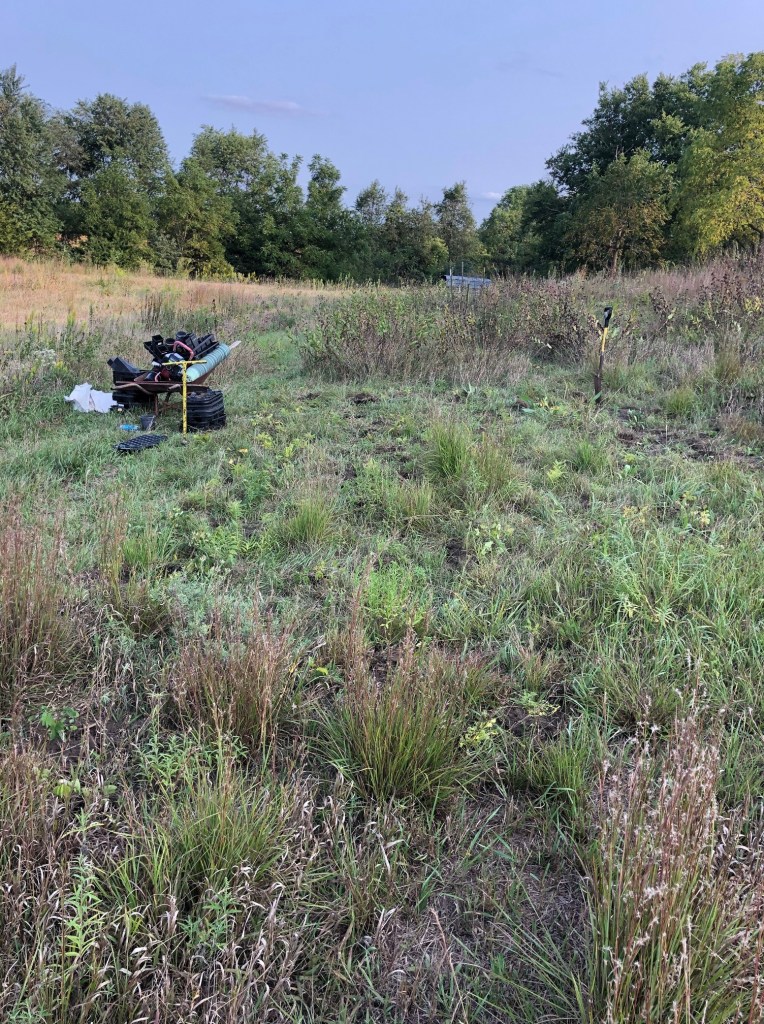

After planting. Should be able to collect seeds next fall from these plants.

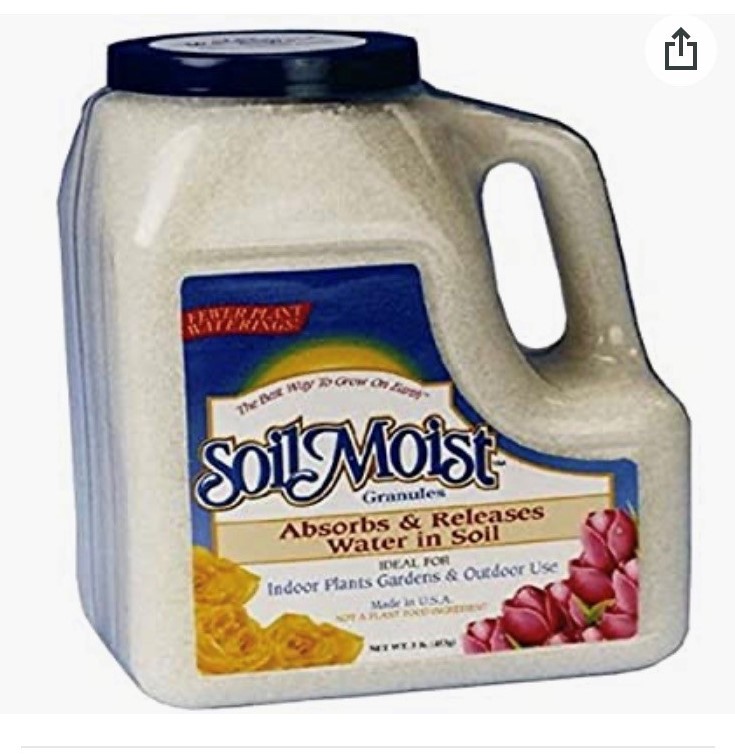

Polyacrylamide was used on some plugs. Wet the product in a bucket of water, then take a handful of the wet polyacrylamide and funnel it into the premade hole by hand. Adding this product gives a couple of field days reprieve till I can come back and water again. A one inch rainfall means I can stop watering for a week. I look at weather forecasts for possible thunder storm front coming and then make a made dash to plant several hundred plugs.
Showy goldenrod, Solidago speciosa, loves sand as do bumble bees.

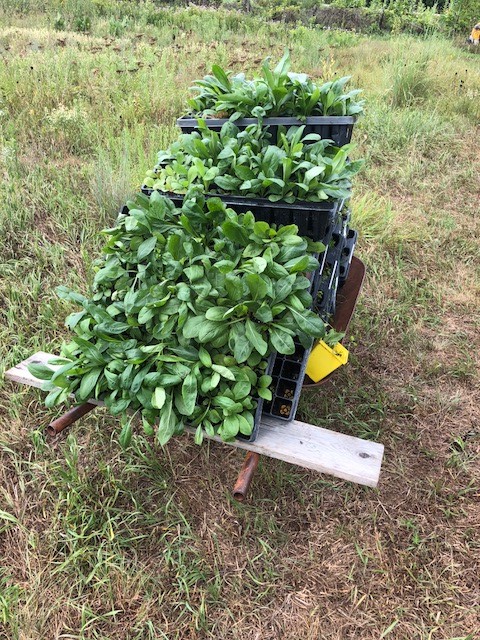

Summer 2020 plants. I produced 10,000 plugs.
Polyacrylamide in water. I have a farm wagon with a 500 gallon tank of water that I can fill 5 gallon buckets with and then fill a 2 gallon watering can to hand water the planted plugs at the last hour of the day. This allows the water to soak in overnight and not evaporate the same day. The trick is to find the plants again to water. If the area is mowed short, I can find the plants again to give them another drink.

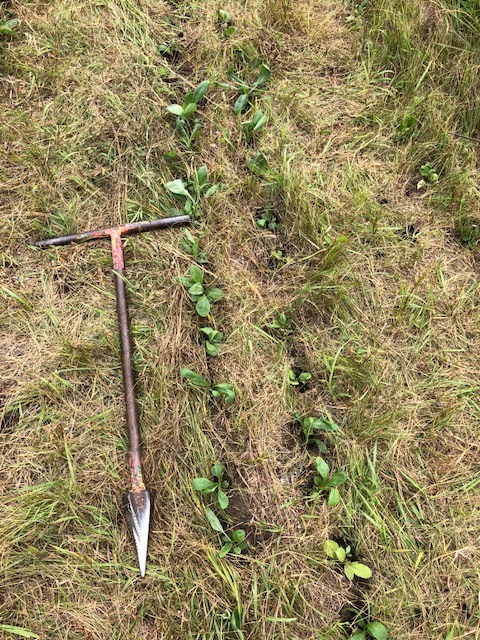

I mowed paths first and then made divot holes with a home made divet bar. This is a 4 way wood splitting head welded to a pipe and then a pipe handle. I think I got 98 % survival overall, and I really didn’t break a sweat.

I have been working my 10 acre sand hill for the last 20 years and have thrown down tons of  forb seed with poor results overall. Little bluestem will grow very well in sand. The forbs don’t seem to get past the brome.

I just learned about the grass herbicide Intensity herbicide three yrs ago. My intention is to switch to more herbicide ( intensity) and try more seed.



Posted in Uncategorized | Tagged , | 8 Comments

On the path to recovery

By Pati Vitt, Lake County Forest Preserves

This is a post from Lake County Forest Preserve, Lake County Nature Blog. https://www.lcfpd.org/blogs/

An aerial view of the 180-acre research project area at Grant Woods in Ingleside. Photo © Mike Borkowski.

Just as the COVID-19 pandemic was starting to grip the world, another global milestone was occurring: The United Nations declared 2021-2030 the “Decade of Ecosystem Restoration.” The official launch date coincides with World Environment Day on June 5, 2021. In an effort to ensure that both people and nature enjoy a sustainable future, it represents a worldwide strategy to stop and reverse habitat degradation across the planet.

According to the Society for Ecological Restoration, the gold standard result for an ecological restoration project is an ecosystem that’s on a self-organizing trajectory to full recovery from human activity. What does that mean? It means little to no human intervention or management is necessary to ensure the health and resilience of that ecosystem. However, there’s a lot of work to be done to set a degraded, or highly altered, ecosystem back on that path. When you visit a preserve and see large pieces of equipment at work, they’re often in use with an eye toward doing just that.

The intensity and frequency of restoration work required depends where along a spectrum a particular natural area starts. An area with low impact might be something like a remnant prairie, which will require little management except for the restoration of controlled burns or the reintroduction of native grazers such as bison (Bison bison). On the other end are those lands most in need of intensive restoration, like former agricultural fields. Generally, the more altered the landscape and the more human activity present there, the more intervention is needed.

A tractor spreads native seed in a former field. Photo © Mike Borkowski.

In the Midwest, many farm fields have been engineered to increase crop yield. This is often done by changing the original hydrology of the habitat with drain tiles, so what was once a wetland becomes cropland. Drain tiles are perforated pipes laid below the soil surface, effectively lowering the water table to encourage root growth of planted crops.

As you might guess, drain tiles are a significant alteration of the original environment. This alteration means that restoration of former agricultural lands, such as the project area at Grant Woods, can be quite complex. Several steps are often needed, and each step requires decision-making.

Removing drain tiles such as this one helps restore the original hydrology of a natural area. Photo © Lake County Forest Preserves.

One factor to consider is how recently the area was farmed. A field that lies fallow for a long time is referred to as an “old field.” The natural process of ecological succession might push the habitat toward one dominated by native plant species that are generalists. In other words, generalist plants can grow in many settings and aren’t very particular about habitat quality. When a farm field goes fallow, these native plants may disperse themselves into it from adjacent areas.

But invasive shrubs and trees can dominate an old field, as well. Invasive plant control can be the first step in a restoration. It may be accomplished with controlled burns, physical removal of woody invasive plants, herbicide application, or all of the above. If only herbaceous (i.e. plants with non-woody stems), invasive species are involved, you might plow the field to allow new native seed to establish rapidly. If invasive species are relatively sparse, as they might be in a newly fallow field, one strategy could be over-seeding the field with fast-growing, native grass species. Following seeding, crews would then selectively apply herbicide to reduce invasive species abundance and boost the success of the newly planted grasses.

A chainsaw operator pauses between felling invasive trees within the project area. Photo © Mike Borkowski.

Once those grasses are well-established, perhaps within a year or two from seed, the next step is to add herbaceous species such as goldenrods, asters and legumes to diversify the plant community. In the very early stages of a restoration—the establishment phase—continuing to control invasive species is critical. Frequent control measures will occur for about five years as native plants become well established. The intensity and frequency of control, though, will decrease over time.

The native seed mix spread here contains seeds sourced from southern Illinois and Kentucky. Photo © Mike
Borkowski.

Many farm fields have hedgerows that grow between them. Hedgerows may contain trees, shrubs and fences. They’re variably used to mark property ownership boundaries, control where livestock wander, or act as a windbreak. Removing hedgerows increases connections between fields. Depending upon the size of the trees, heavy equipment may be employed. One common piece of equipment called upon for this task is a skid steer with a Fecon mower attached.

A skid steer with a Fecon mower attachment shreds buckthorn and other woody invasive species in a thick hedgerow of invasive species. Photo © Mike Borkowski.

The Fecon mower attachment is ideal for shredding and mulching woody material very quickly. Large areas of invasive buckthorn (Rhamnus cathartica) can be removed efficiently by this tool. The skid steer may be equipped with large wheels for versatile movement, or it could have tracks that reduce damage to the soil by distributing the weight of the machine over a bigger area. An additional way to avoid damage is to limit the use of a skid steer to times of year when the soil is very dry or when the ground is completely frozen.

At Grant Woods this winter, we’re removing invasive trees and shrubs, including buckthorn, box elder (Acer negundo) and white poplar (Populus alba), often confused for birch trees. Our end goals are to open up the tree canopy to encourage oak regeneration, and to support a diverse community of native shrubs and herbaceous species beneath the oaks that remain. We’ll plant additional trees and shrubs, which will provide habitat for birds and other animals. Once the restoration is complete, the project area will be continuous habitat.

A top down view of invasive trees cut by a chainsaw operator. Photo © Mike Borkowski.
Cut invasive trees and shrubs are burned in brush piles onsite. Photo © Mike Borkowski.

As you can see, restoration projects are long-term endeavors, requiring detailed planning and execution to successfully set a natural area back on the path to recovery. Site history, current flora and fauna populations, hydrology, and more must be considered. Results will not reveal themselves overnight—plants take time to grow from seed, of course—but we’ll be here to document and share them as they happen.
