by Bill Kleiman

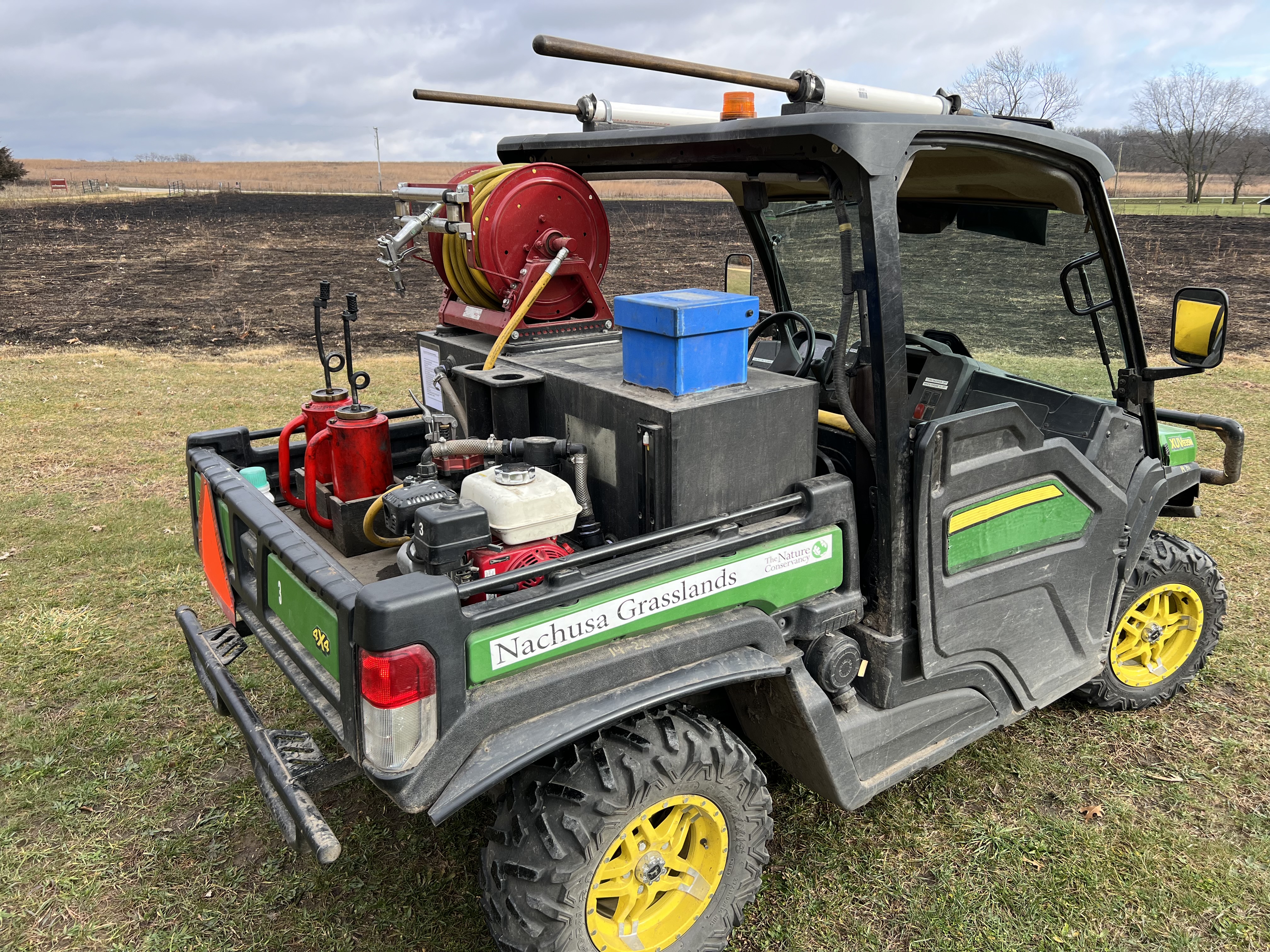

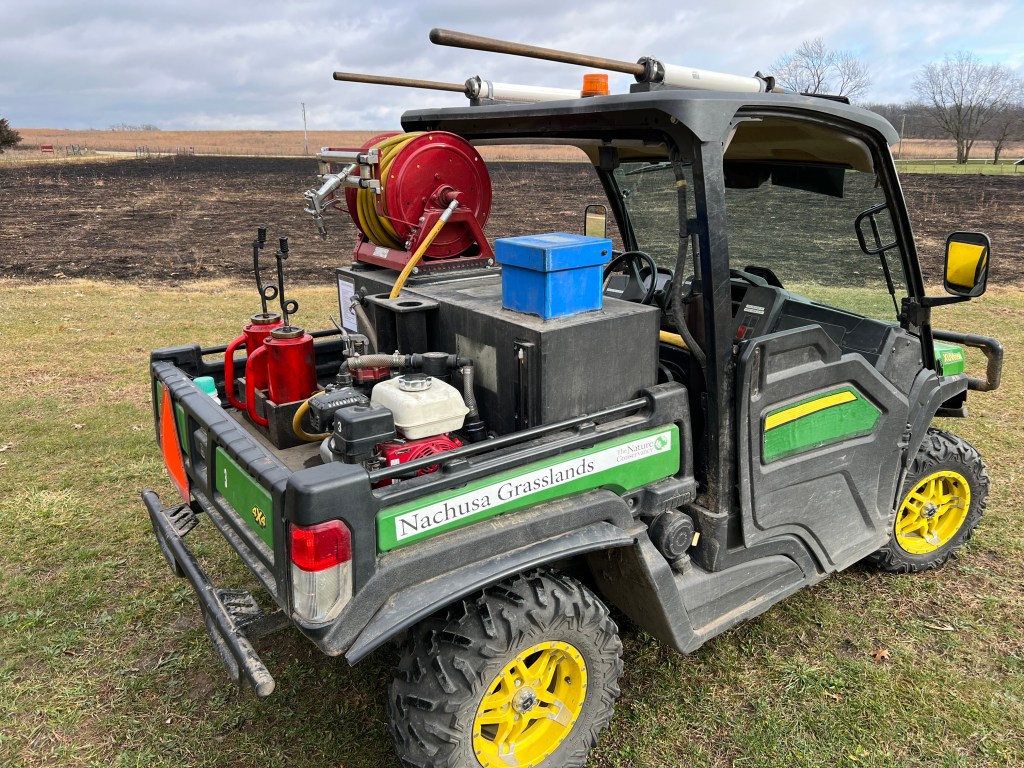

Last week’s pumper unit had the tank taking up the entire bed. It was longer and shorter. The pump, motor, torches, and hose reel were all on top of the tank. But the design above is also nice and works fine. Here the pump, motor and torch holder are on the deck. I could not fit the hose reel on the deck too. The deck extends under the tank which is about the same volume of 75 gallons. Here the tank must be taller to meet that volume. This tank also has a sump on the bottom which allows the pump to drain off all the water. When you order a flat bottom tank always ask for sump.

All the other components are the same as last weeks post. I like both these designs equally. They both ride smoothly and seem stable.

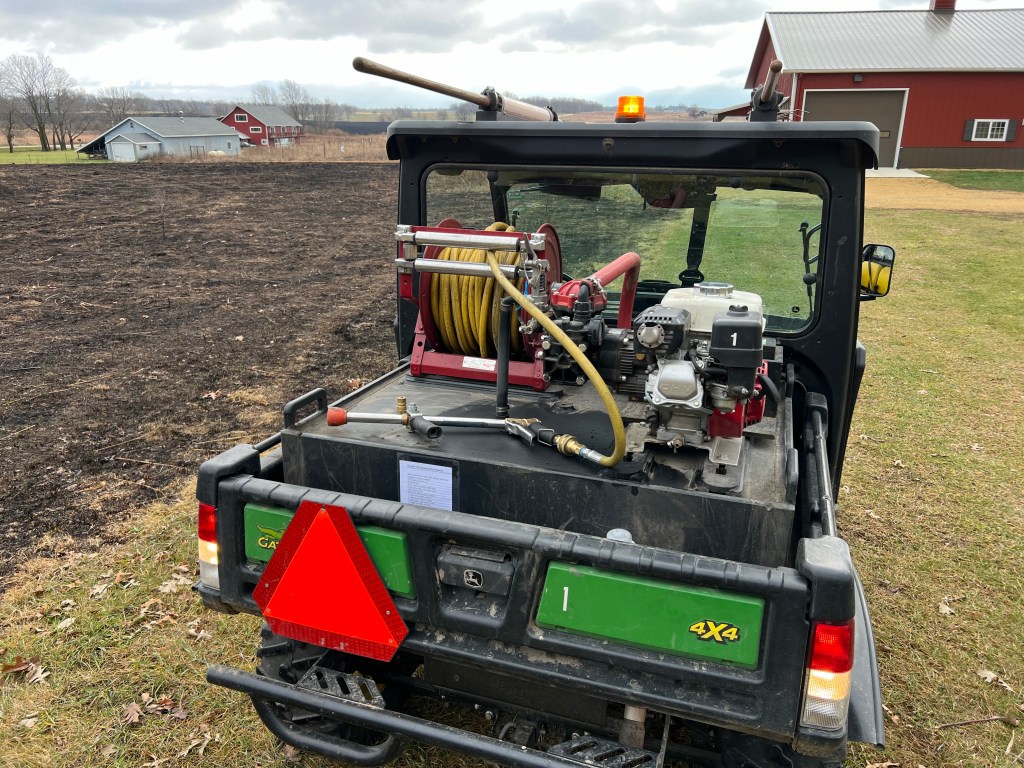

Above is the unit I profiled last week.

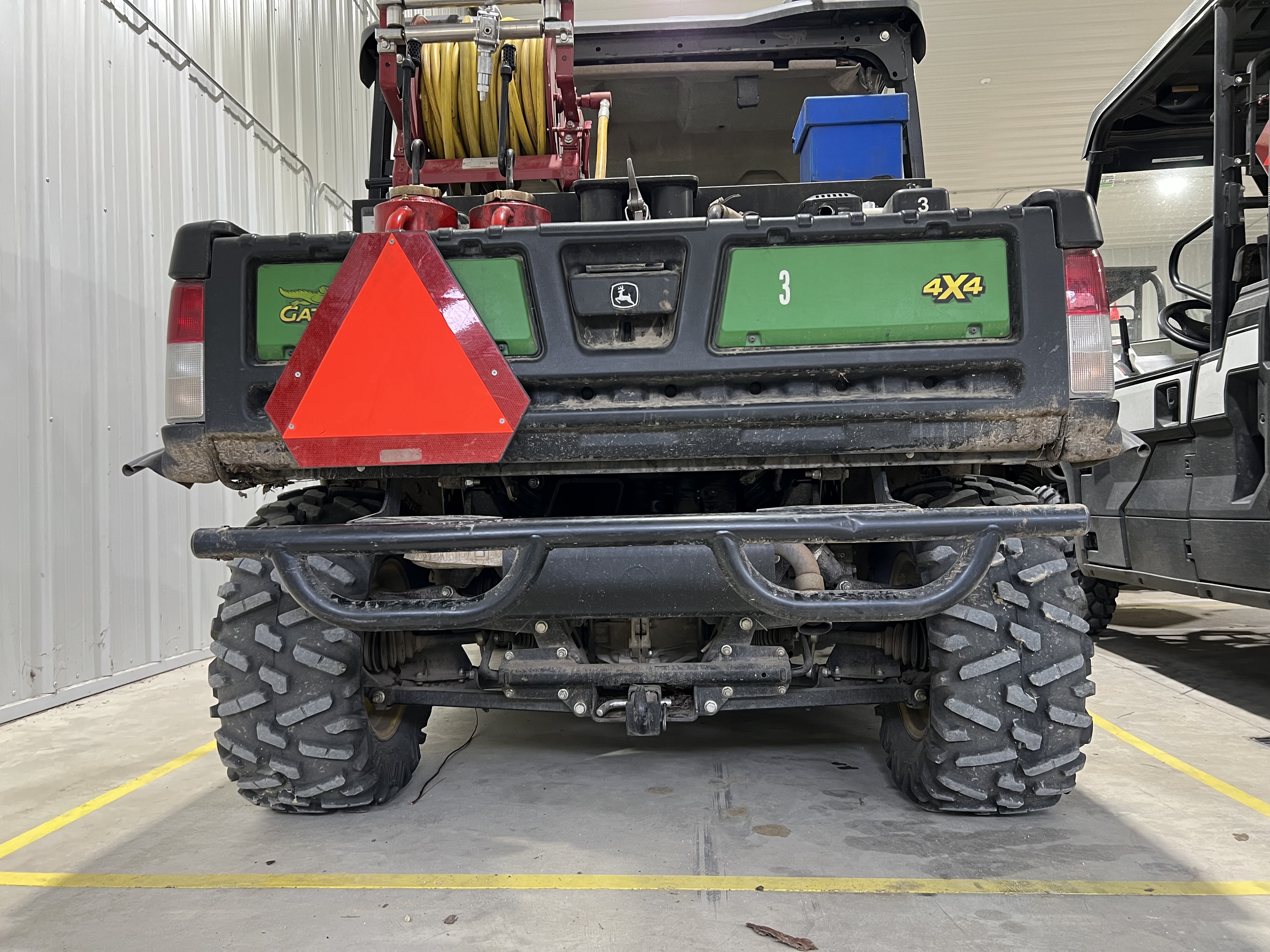

Note above how the tank full of water compressed the shocks enough that the machine is flat on the bottom. If it were without any skid in the bed the hitch would be about two inches higher.

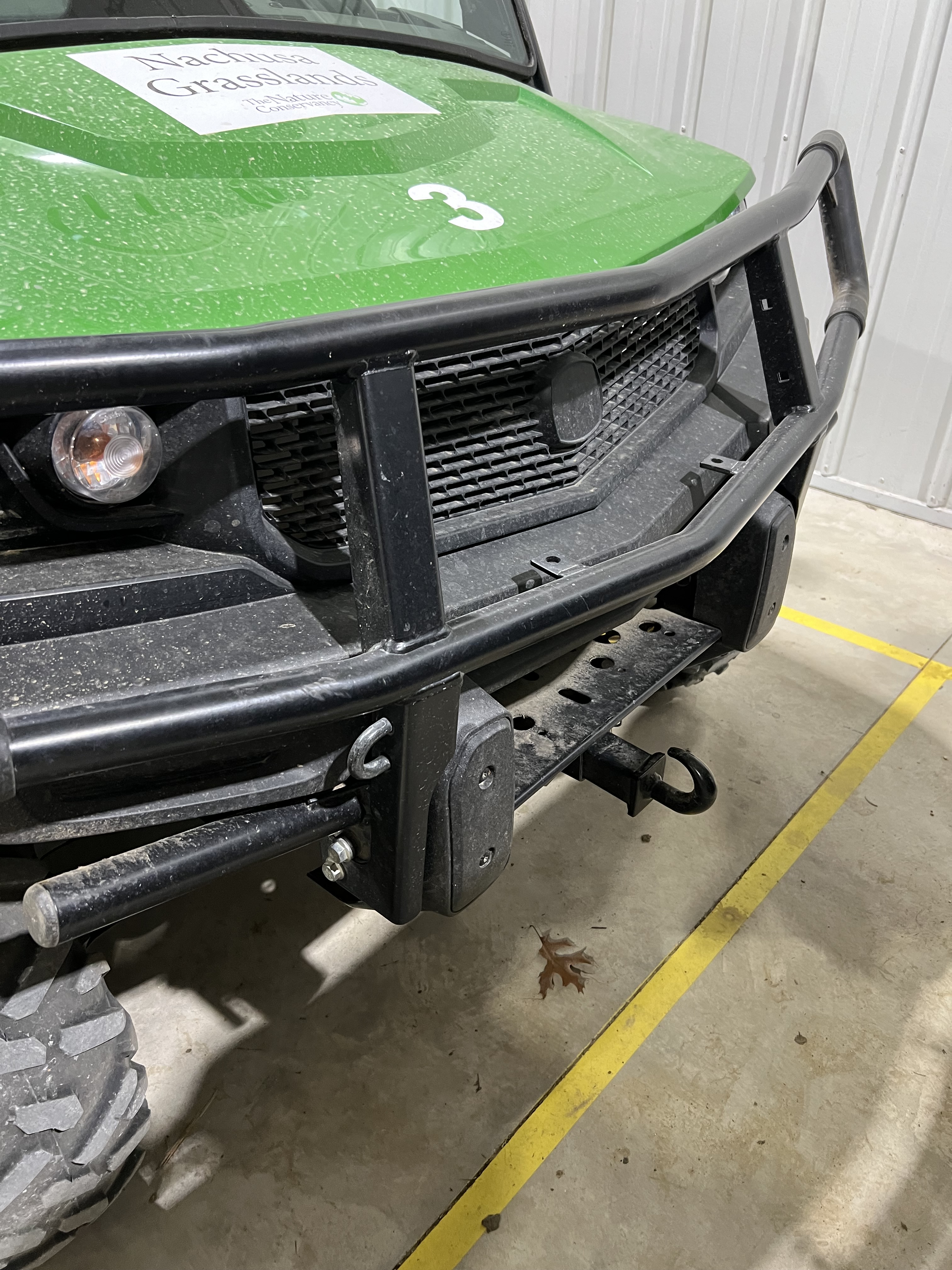

This model has a hitch receiver on the back and front. These are handy for chaining down the UTV on a trailer, or for pulling a UTV that is stuck in the mud. We try to keep a tow strap in each UTV and truck.
